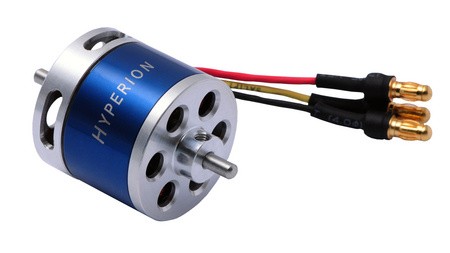

Hyperion ZS 2213 18-Turn 1042Kv

In stock (1 item available)
Not rated yet

The new Hyperion Zs motor series cost more than "budget" brands, but provide much more value in the short run - and over the years.

  • €28.02
Qty:
  • Weight
    0.15 Kgr
  • SKU
    HP-ZS2213-18

The new Hyperion Zs motor series cost more than "budget" brands, but provide much more value in the short run - and over the years.  Simply put, everything inside and out is the very best obtainable.  Japanese 0.2mm stator steel and NMB bearings, 200C magnets and coil wire (hand-wound), and precision all-CNC construction;  All these lay the foundation on which two years of intensive design and testing have delivered the highest efficiency motors ever produced.  And stringent ISO 9001 Quality Control - plus extra care such as magnet temperature batch testing - insure your maximum satisfaction, both present and future.

The Zs22 series replace our previous Z22 series airplane motors.  While the Z series remain fine motors and still compete with every other high-quality brand in the market, the new Zs simply blow away the competition on performance.  On average, when the a Zs motor is configured to turn the same prop at the same rpm as the "Z", it will consume 13% to 18% less power from the battery, due to large gains in efficiency.  This allows you to use a smaller-capacity Hyperion G3 LiPo pack to achieve the lowest possible flying weight. Or you can fly much longer on the same size pack and have that pack last longer, due to reduced stress on the battery!  Alternatively, you may choose to "push" the Zs series motors much harder, as they can handle more power without overheating.

Zs22 motors are drop-in replacements for the previous Z22, which were recommended for many of our Hyperion ARF models.  In addition, the Zs22 come with an extensive hardware package containing everything needed to either front or back mount the motor - including a prop adapter with 5mm shaft - so there are no extra costs.

Zs22 series technical specifications and suggestions
 ZS2205-34ZS2205-38ZS2209-24ZS2209-30ZS2213-18ZS2213-22
Weight32.6 g32.6 g45.4 g45.4 g59.7 g59.7 g
Winding34T38T24T30T18T22T
Resistance0.164 Ohm0.207 Ohm0.122 Ohm0.161 Ohm0.082 Ohm0.116 Ohm
IO (@10V)0.46 A0.4 A0.5 A0.45 A0.58 A0.46 A
KV1587 rpm/V1430 rpm/V1165 rpm/V950 rpm/V1042 rpm/V862 rpm/V
Typical Current5A~10A4A~9A8A~14A7A~13A12A~20A10A~17A
Max Current15A13A19A17A25A21A
Max Power115 Watts100 Watts210 Watts190 Watts280 Watts240 Watts
G3 LiPo LightCX 450CX 450CX 850CX 850VX 1100VX 1100
G3 LiPo DurationCX 850CX 850CX 1100CX 1100CX 2100CX 2100
Atlas ESC Suggested12A12A12A/25A12A/25A25A25A
Replaces "Z"Z2205-34Z2205-38Z2209-26Z2209-32Z2213-16/20Z2213-20/24
  • Manufacturer
    Hyperion
